MASTER ENGINE REBUILD KIT FITS OPPOSED TWIN CYLINDER BRIGGS & STRATTON 16HP-18HP

Home > Parts & Tools > Fuel System Parts >

Alternative Views:

Our Price: $199.95

Product Code: STANDARD-OPPOSED-TWIN-MASTER

Qty:

Description

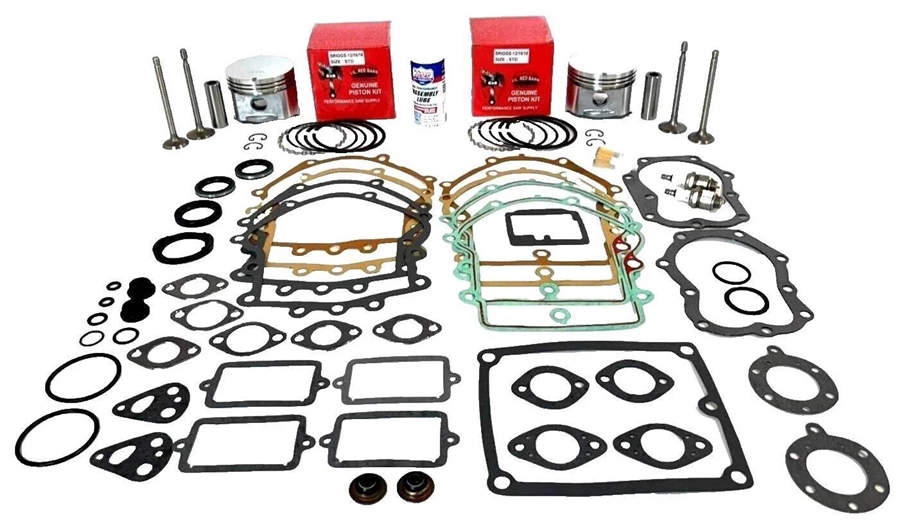

ENGINE REBUILD KIT FITS OPPOSED TWIN CYLINDER BRIGGS & STRATTON 16HP-18HP 19HP, COMES WITH A PISTONS, RINGS, VAVES, VALVE SEALS, SPARKPLUGS, FUEL FILTERS AND LUCAS ASSEMBLY LUBE, COMPLETE GASKET SET WITH CRANKSHAFT SEALS.

FOR VERTICAL OR HORIZONTAL OPPOSED BRIGGS AND STRATTON ENGINES.

TWIN OPPOSED CYLINDER MODELS THAT START WITH EITHER 40, 42, 46 IN THE MODEL NUMBER, 400400, 400700, 401400, 401700, 402700, 404700, 402400 & 422700, 42A707

NOTE: THESE PISTONS, VALVES, GASKET SET WITH SEALS, SPARKPLUGS ARE NOT MADE IN TAIWAN OR CHINA

SHIPS FROM USA WITH A TRACKING NUMBER

REPLACMENT PARTS LIST IN THIS KIT

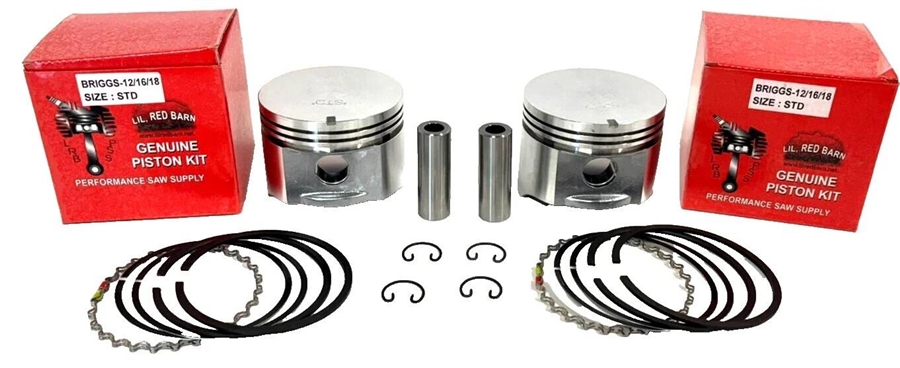

2- 498584, 391285, 498584, 499284, 394661, 499282, 499956, 394955, 393271 STANDARD REPLACEMENT PISTON WITH RINGS

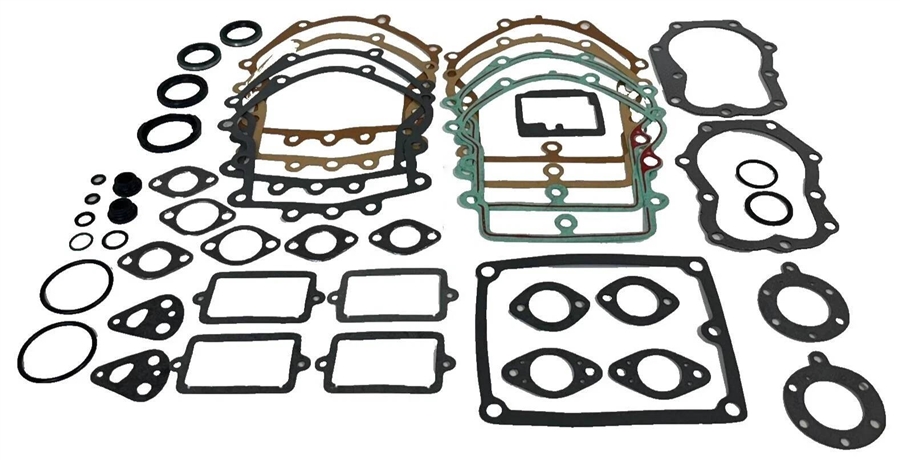

1- 495868, 491856, 394501, 393278 GASKET SET WITH SEALS

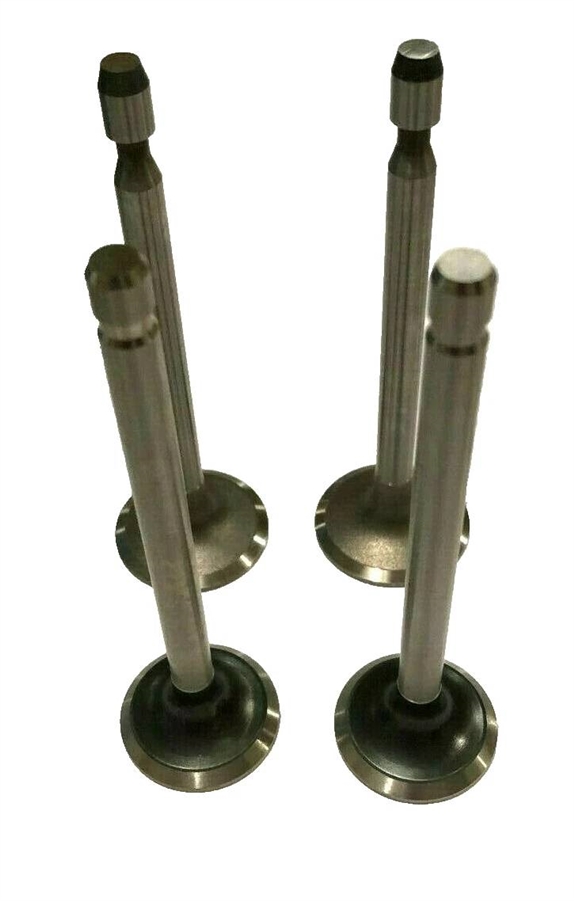

2- 261528, 691804 INTAKE VALVES

2- 390420, 691794 EXHAUST VALVES 390420, 691794

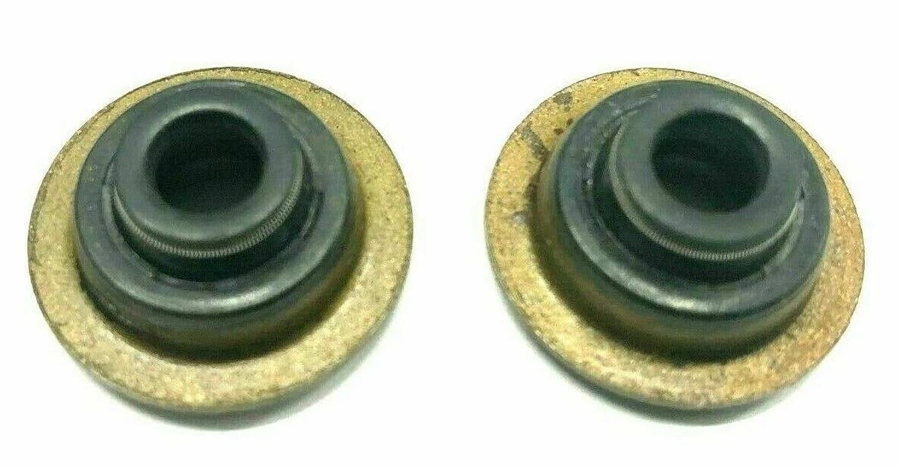

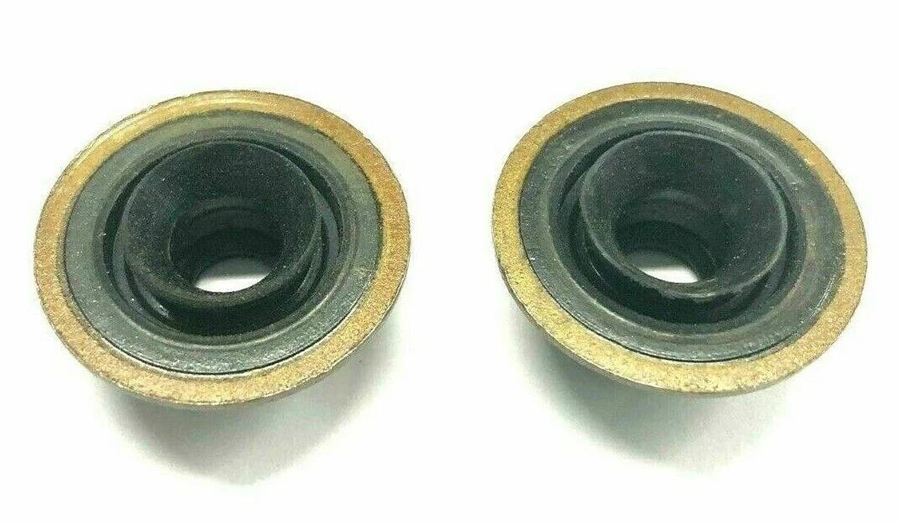

2- 497212, 692324 VALVE SEALS NEW STYLE & IMPROVED

2- SPARKPLUGS AUTOLITE, USA MADE SPARKPLUGS

1 FUEL FILTER 493629, 691035 60 MICRON FUEL FILTER

1- 10152 LUCAS OIL ENGINE ASSEMBLY LUBE 4OZ READ NOTE ON THIS ASSENBLY LUBE BELOW

SPECS ON THIS PISTON:

STANDARD BORE 3.4365"- 3,4375" OR 87.3125MM

.010" OVERSIZE 3.4465" - 3.4475"

.020" OVERSIZE 3.4565" - 3.4575"

.030"OVERSIZE 3.4665" - 3.4675"

.040" OVERSIZE 3.4765" - 3.4475"

NOTE: WE ARE THE ONLY EBAY SELLER TO PROVIDE INTAKE VALVE SEALS IN THE OVER KIT FOR BRIGGS & STRATTON OPPOSED TWINS

THESE INTAKE VALVE SEALS ARE NOT MADE IN TAIWAN OR CHINA
