1 NEW PISTON KIT FITS KOHLER KT17, M18, MV16, MV18, 52-874-11-S, SHIPS FROM USA
1 NEW PISTON KIT FITS KOHLER KT17, M18, MV16, MV18, 52-874-11-S, SHIPS FROM USA

Alternative Views:
Our Price: $89.95


Product Code: 52-874-11-S-1
Qty:

Description

1 BRAND NEW AFFORDABLE PISTON KIT FITS KOHLER KT17, M18, MV16, MV18, 52-874-11-S,COMES WITH REPLACEMENT RINGS 52-108-09-S, SHIPS FROM USA, NEW THESE ARE HIGH QUALITY PISTON KITS, NOTE: THESE PISTONS & RINGS ARE NOT MADE IN CHINA OR TAIWAN, SHIPS FROM USA

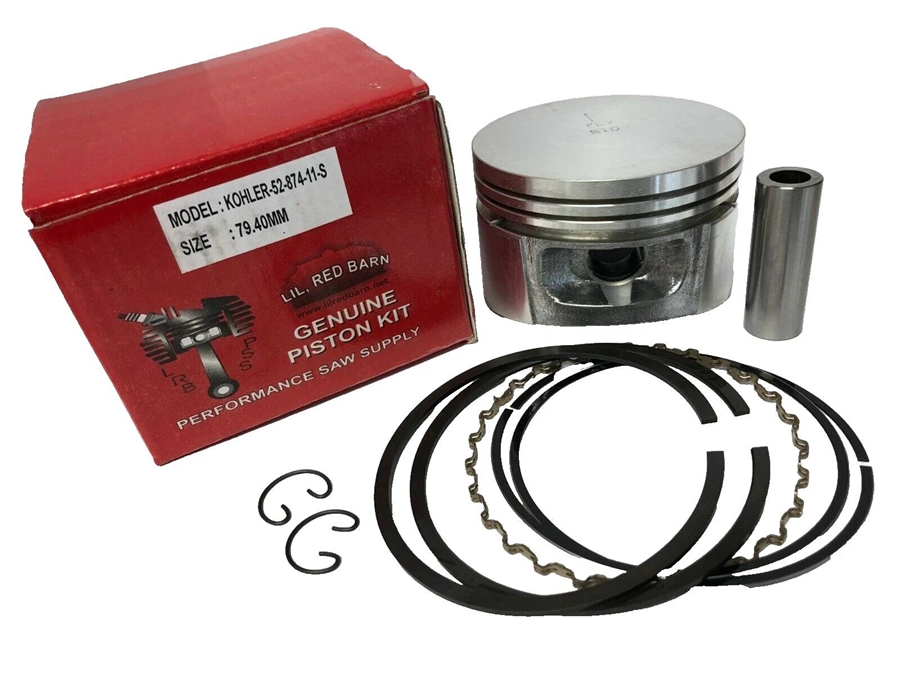

NOTE: YOU WILL GET ONE PISTON KIT AS SHOWN IN THE PICTURE, STANDARD PISTON
SPECIFICATIONS ON THESE KOHLER PISTONS PER KOHLER SERVICE MANUAL:
STANDARD BORE 3.125" PISTON MEASUREMENTS 3.119"-3.117"
.010" OVERSIZE BORE 3.135" PISTON MEASUREMENT 3.129"-3.117"
.020 OVERSIZE BORE 3.145" PISTON MEASUREMENT 3.139"-3.137"
.030" OVERSIZE BORE 3.155" PISTON MEASUREMENT 3.149"-3.147"
CLEARANCE BETWEEN PISTON AND CYLINDER WALL .006"-.008"
SERVICE MANUAL ON LIL RED BARN WEBSITE FOR FREE DOWNLOAD
